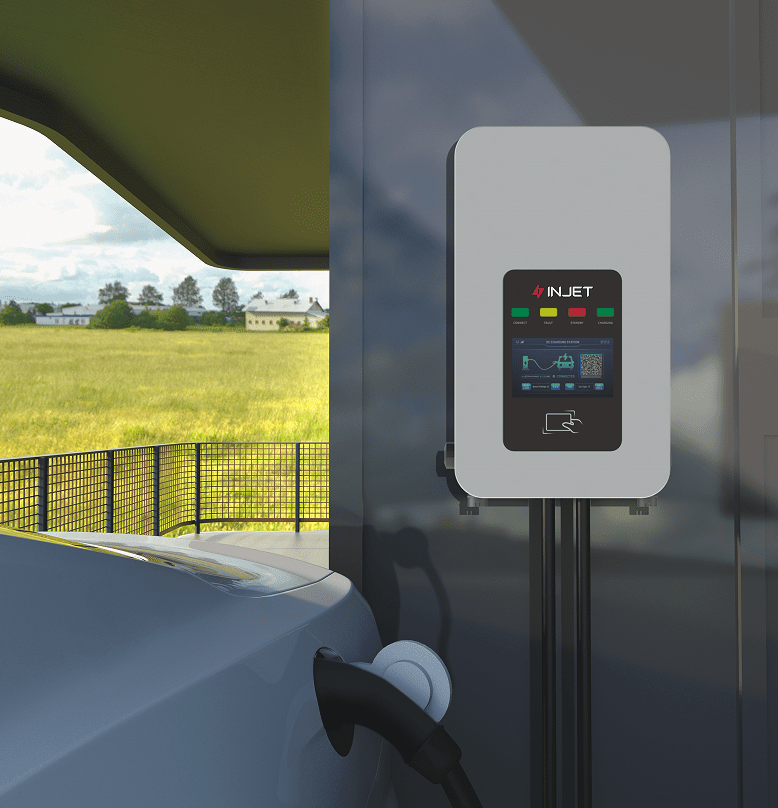

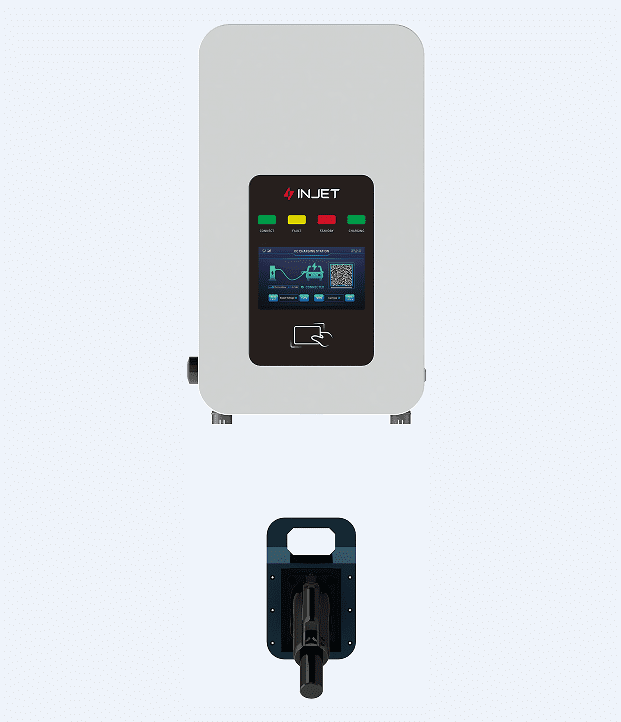

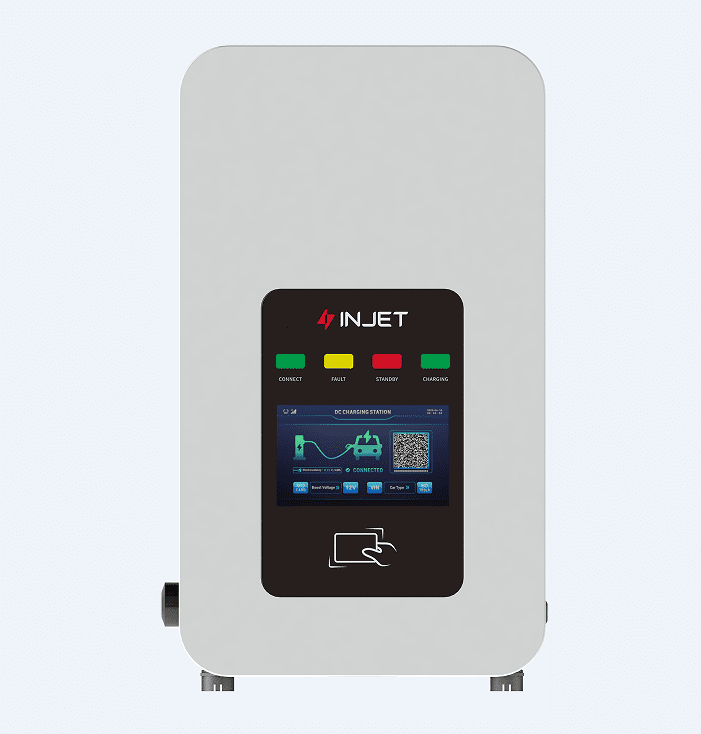

PSHUB20KW. wall-mounted / floor plate type 20kW / 100A .400V DC Commercial / Household EV Charger INJET-Nexus (US / EU)
1.wall-mounted / floor plate type 20kW / 100A .400V DC Commercial / Household EV Charger INJET-Nexus (US / EU)
Details:
EAN:
SKU: PSHUB20KW. wall-mounted / floor plate type 20kW / 100A
.400V DC Commercial / Household EV Charger INJET-Nexus (US / EU)
essential information
Rated power: 20kW
Input voltage: TN-S, 400V ± 15%
Input frequency: 50 / 60Hz
PF (power factor): 98%@50%~100% full
Load output power
Output voltage: 200~1000VDC
Output current: 0~100A
Constant power output range: 400~1000V DC
Charging configuration
Connection device: 1 charging cabinet and 1CCS2 charging plug, 5m charging cable
Ripple factor: s±0.5%(RMS)
Peak efficiency: 96%@1000y
50%~100% full load, rated input voltage
Pressure regulator type accuracy: <0.5%
Current stable accuracy: <± 1%@20%~100% full
Load output power
Output voltage error: ± 0.5%
Output current error: s ± 1% (when output current is 30A); ± 0.3A (when output current is <30A)
THD-I:≤5%
Electric energy measurement method: measure the DC output electric energy HMI 7-inch LCD touch screen
Communication interface with the central server: Ethernet / 4G-LTE
Communication protocol: OCPP 1.6J
Quality assurance: 12 months
Waterproof grade: IP65
Impact protection: IK 10
Operating temperature: -20~55℃
Guide output: 50~55℃
Working humidity: 95% without water small drop
Noise control: 60 dB
Other instructions: working efficiency is greater than 98%; insulation resistance is greater than 10 MΩ;
Commodity materials: tempered glass front + back of metal plate
Residual current protection: Type A, 30 mA + 6 mADC
Display screen: 4.5 inches
Product color: silver gray front + black back or OEM color
Product Size: 655 * 380 * 160mm
Commodity weight: 60kg
Installation mode: wall-mounted / landing type
Landing height: <2000m
Product certification: 3C, CE, ROHS, REACH
Product features:
1.APP control:
△ Set the current: You can set the current when the power grid is overloaded
△ Control to stop and start: Control your phone to stop and start, and you can control it anywhere
△ Charging reservation: If you want an electric car to charge at night, charging reservation through the APP is a good choice, very convenient
△ Record: You can view the charging record through the APP at any time
2. Load balance management:
△ Limit the total charging load can protect the local grid
△ Sharing the charging load can reduce the cost of the power connection required
△ Choose the open CT (current transformer) as the current sensor, there is no physical wiring between the equipment, and it has the advantages of open and closed installation, convenient and fast wiring, and no additional infrastructure or installation cost
3. Specifications:
△ The body material adopts thermoplastic (insulator combustible UL94 VO) special integral molding, suitable for indoor and outdoor safety
