PS080YBO3 / 5H. Floor type 2set connector DC380V; 80KW commercial type 2 electric vehicle smart charger.
1.Load balance management: limiting the total charging load can protect the local grid; sharing the charging load can reduce the required power connection cost
2.Record: You can view the charging record through the APP at any time; high-light LCD large screen: display real-time charging current, voltage, power consumption and time
3.Charging charging: If you want an electric car to charge at night, booking an APP is a good choice, very convenient
4.Set the current: When the grid is overloaded, you can set the current
5.High quality and safety: overvoltage, overvoltage, overload, short circuit, leakage, grounding, overtemperature, surge and other multiple protection
Details:

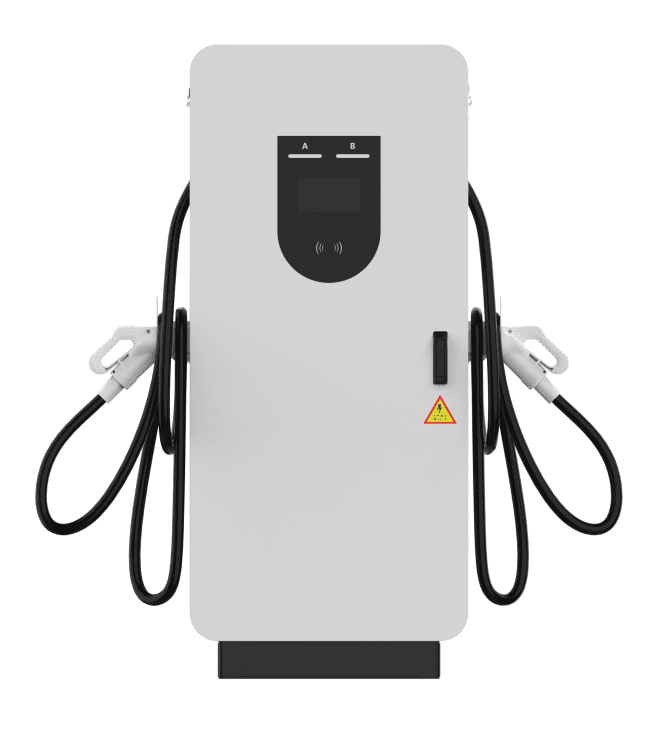

PS080YBO3 / 5H. Floor-type 2set connector 3-phase DC EV charger. Suitable for US; EU; JP; UK and other international electrical standards 80kW commercial type 2 electric vehicle intelligent charging station.
technical parameter:
Output voltage: 200-750 V DC;
Input voltage: DC380V± 15%;
Rated current:
Rated power: 80kW;
Frequency range: 45-65 Hz;
Single-gun output current range: 200V-500V;
Output voltage: 0-120 amps;
Connector: 2 sets;
Operating temperature: -25°C~ + 50°C;
Operating humidity: 5%~98%;
Cable length: random standard with 5m. Support to purchase 10m; 15m;
Connector type: NEMA 5-15 / 6-20 / 6-30 / 6-50 / 10-30 / 10-50 / 14-30 / 14-50 / EU plug / UK plug / CEE plug
Standard: EC61851-1:2017; ICE62196-2:2016;
Support communication: APP; ocpp1.6j; rs-485; LAN; 4g; rfid card;
Working life of connector machinery: 10000 times (no-load plugging);
Key surface index: charging time; real-time current / voltage / power supply / connection / charging / fault;
Product certification: 3C; CE; ROHS; REACH; cULus.
Commodity features:
△ Smart charger product 3-phase; DC 380V± 15%;
△ DC / ac smart charger covers byd; nio; xping; ideal car; aion; ZEEKR; audi; BMW; Chevrolet; Mercedes; porsche; Volkswagen; Volvo; Tesla; Citroen; fish; ford; mitsubishi; nissan; Peugeot; Renault; Smith; tower; Toyota; Honda; prius; chery; walker most countries such as electric car market family (residential) and commercial purposes;
△ Safety design / multiple protection: underpower protection; overvoltage protection; overload protection; overcurrent protection; overwet protection; leakage protection; grounding protection; lightning protection; electrostatic protection; flame retardant protection;
△ Waterproof grade: IP54;
△ Noise control: 60dB;
△ Human-machine interface: 7-inch LCD color display screen touch screen; LED indicator light;
△ OLED screen: display the charging current; voltage; output energy; charging time; status information; fault information; etc.;
△ Body materials: metal;
△ Quality assurance: 12 months;
△ Device selection: support OEM customization.
Note: If the single product weight of DC / AC EV charger is more than 10 KG, both parties shall negotiate the quotation of transportation cost
