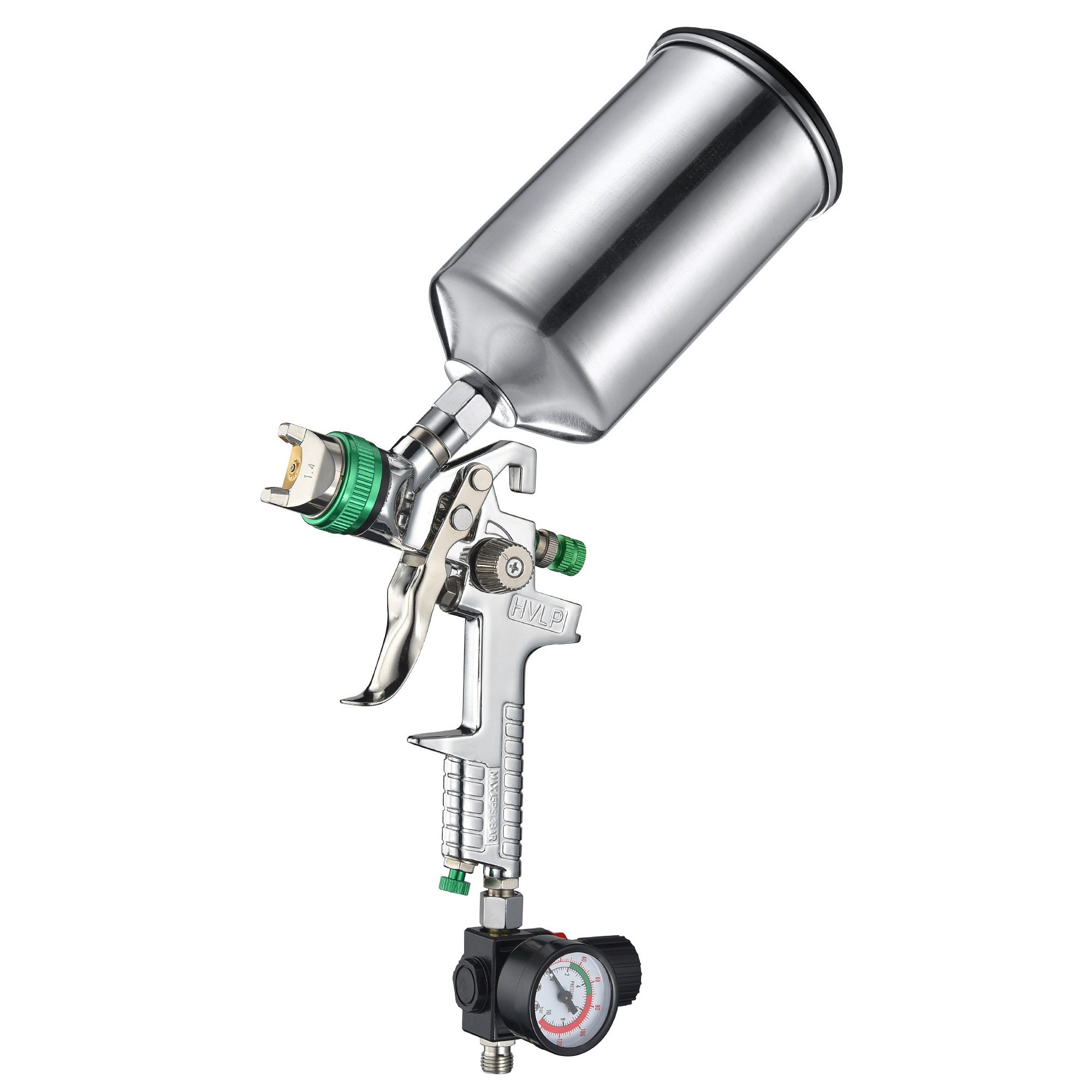

HVLP Spray Gun 1.4mm 1.7mm 2.5mm
Features:
- Efficient Air Spray - HVLP Gravity Feed Air Spray Gun Set includes a spray gun with 3 nozzles; a paint cup; an air pressure regulator with gauge and a set of accessories; designed for spraying an output volume up to 260 ml/min and a long spraying distance of 8 11/16"; widely used for spraying different coating surface on car; furniture; wall; etc.

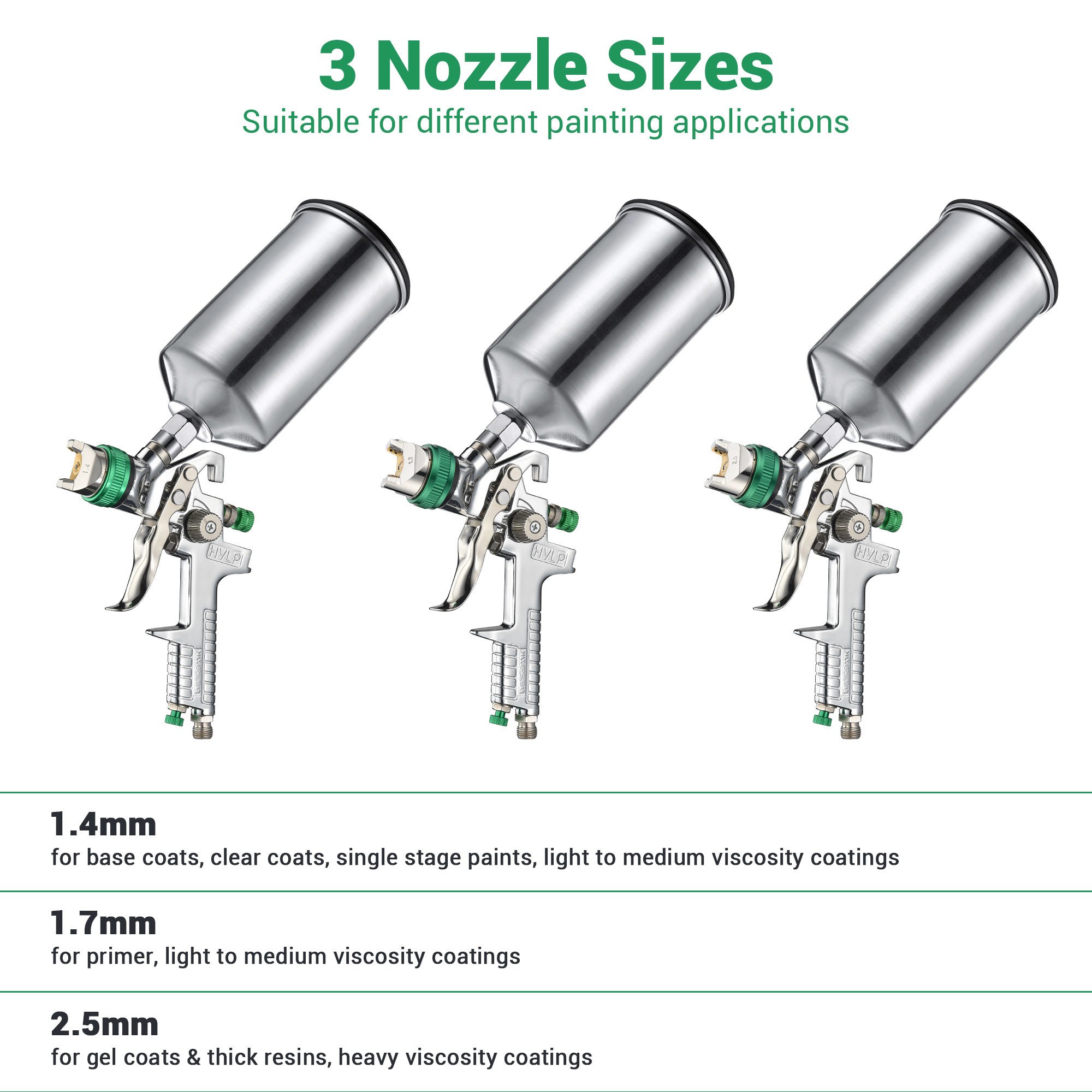

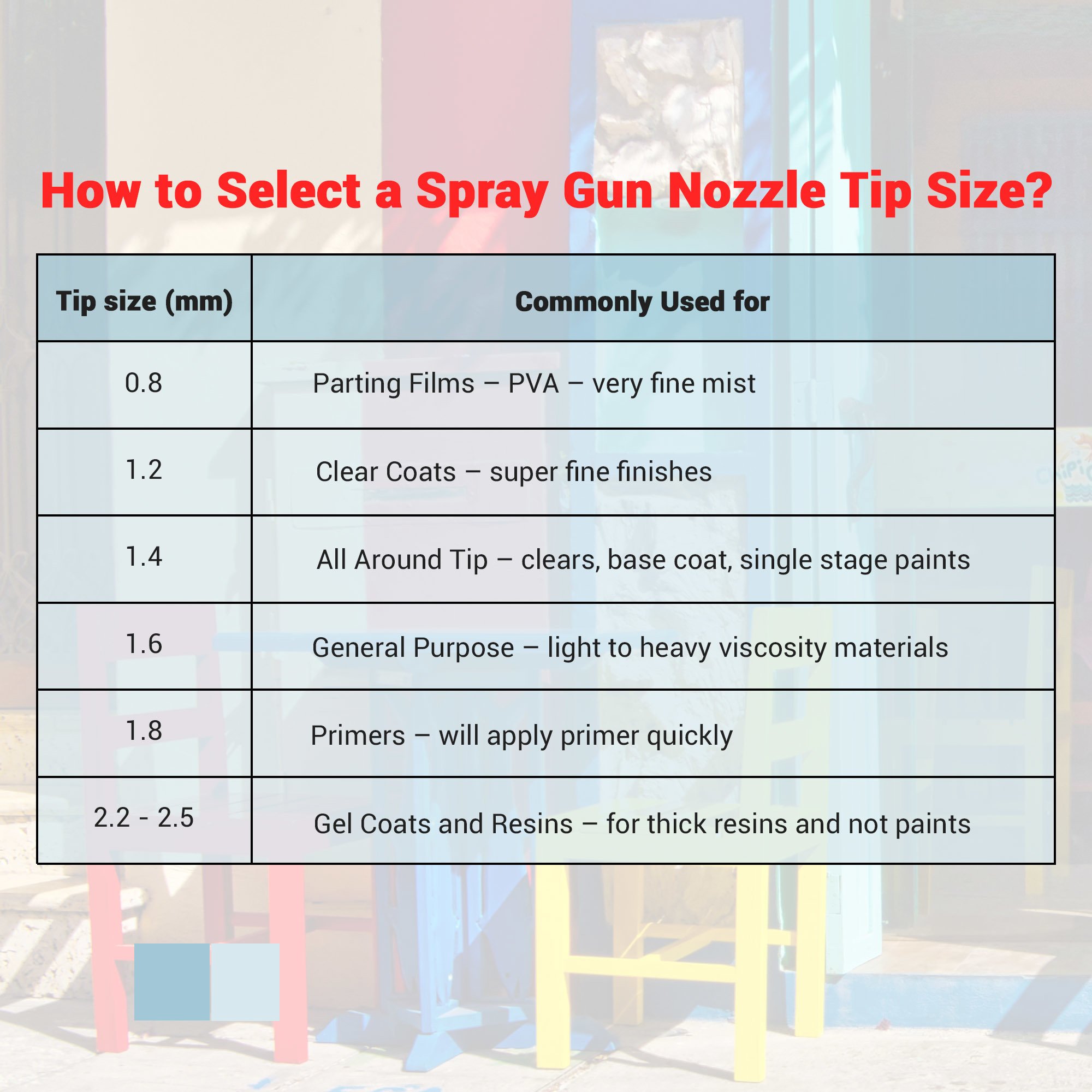

- 3 Nozzle Sizes - With 1.4/1.7/2.5mm nozzles for different painting applications; 2.5mm nozzle for gel coats; thick resins and heavy viscosity coatings; 1.7mm nozzle for primers; medium to heavy viscosity coatings; 1.4mm nozzle for base coats; clear coats; single stage paints; light to medium viscosity coatings

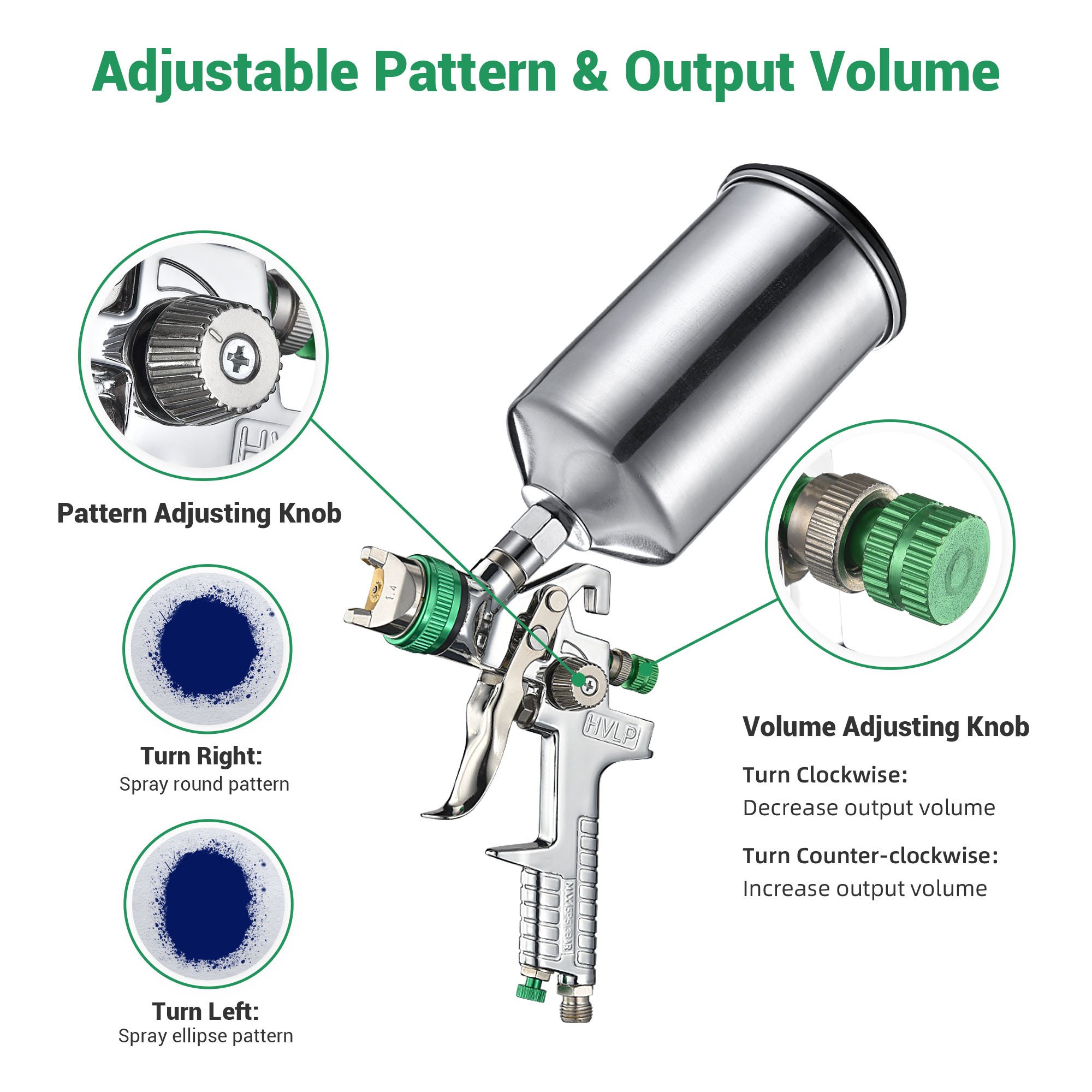

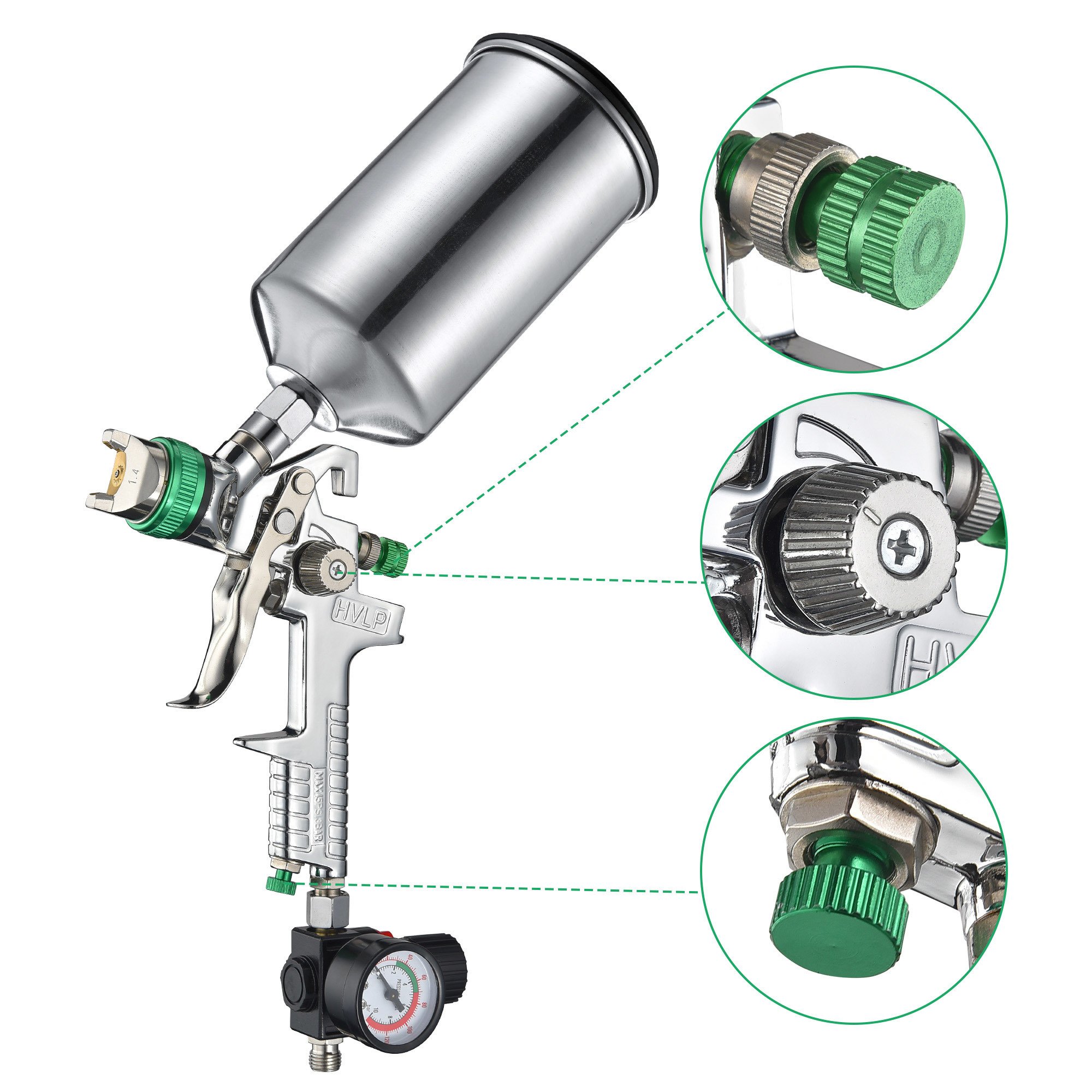

- Adjustable Pattern & Output Volume - Features a pattern adjusting knob to spray pattern from round to ellipse according to your need; along with a volume adjusting knob for controlling the fluid output volume; suitable for providing uniform spraying & different atomization effects for different coatings
- Easy to Use - Includes all necessary accessories for simple installation; easy to disassemble for cleaning each part conveniently; comes with a wrench for unlocking the nozzle from the spray gun for further cleaning
- Durable - Made of sturdy aluminum alloy; the spray gun provides a long lifespan and supports long time use; aluminum paint cup and stainless steel needles for ensuring rust & corrosion resistance
Specifications:

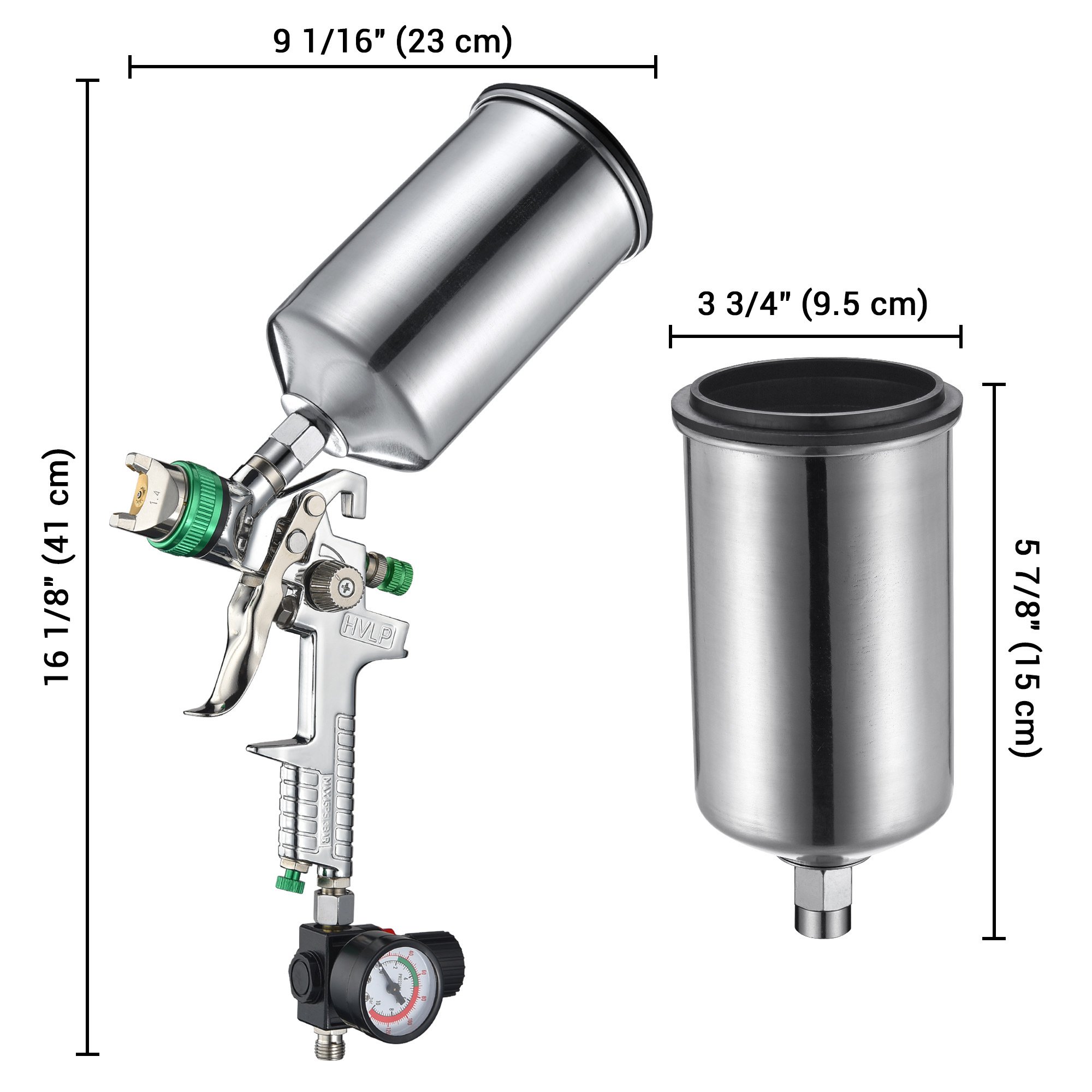

- Overall Dimension After Installation(LxWxH): 16 1/8" x 9 1/16" x 1 3/16" (41 x 23 x 3 cm)
- Spray Gun Overall Dimension(LxW): 7 1/16" x 5 11/16" (18 x 14.5 cm)

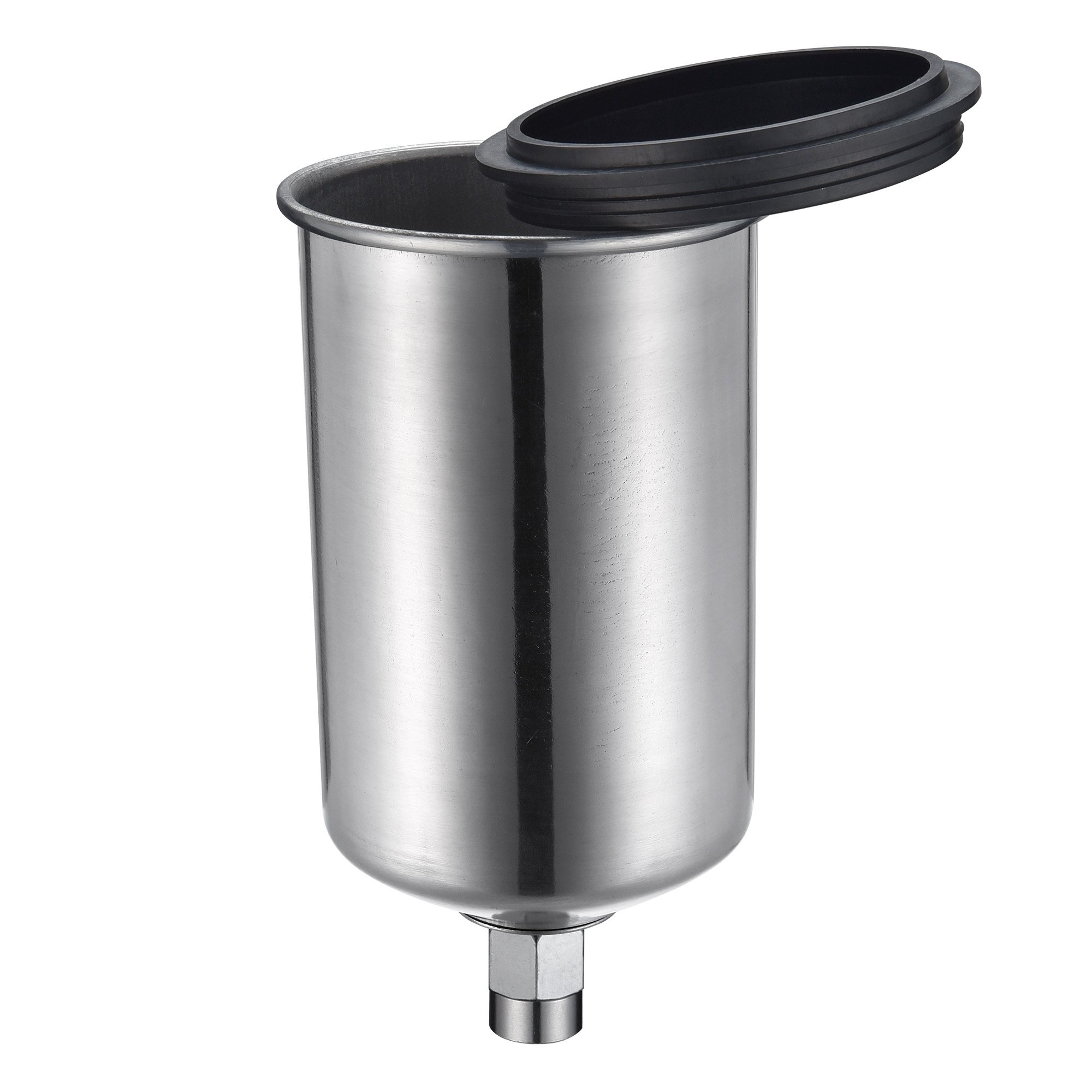

- Cup Dimension(Dia.xH): 3 3/4" x 5 7/8" (9.5 x 15 cm)
- Cup Capacity: 1000 ml
- Nozzle Size: 1.4 mm; 1.7 mm; 2.5 mm
- Paint Spray Volume: 260 ml/min
- Spray Distance: 8 11/16" (22 cm)
- Spray Diameter: 8 11/16" (22 cm)
- Air Inlet: 1/4"
- Working Air Pressure: 36.3 to 50.8 psi (2.5 to 3.5 bar)
- Air Consumption: 2.5 to 3.5 CFM
- Compatible Compressor Power: More than 4HP
- Net Weight: 2.43 Lbs (1.1 kg)

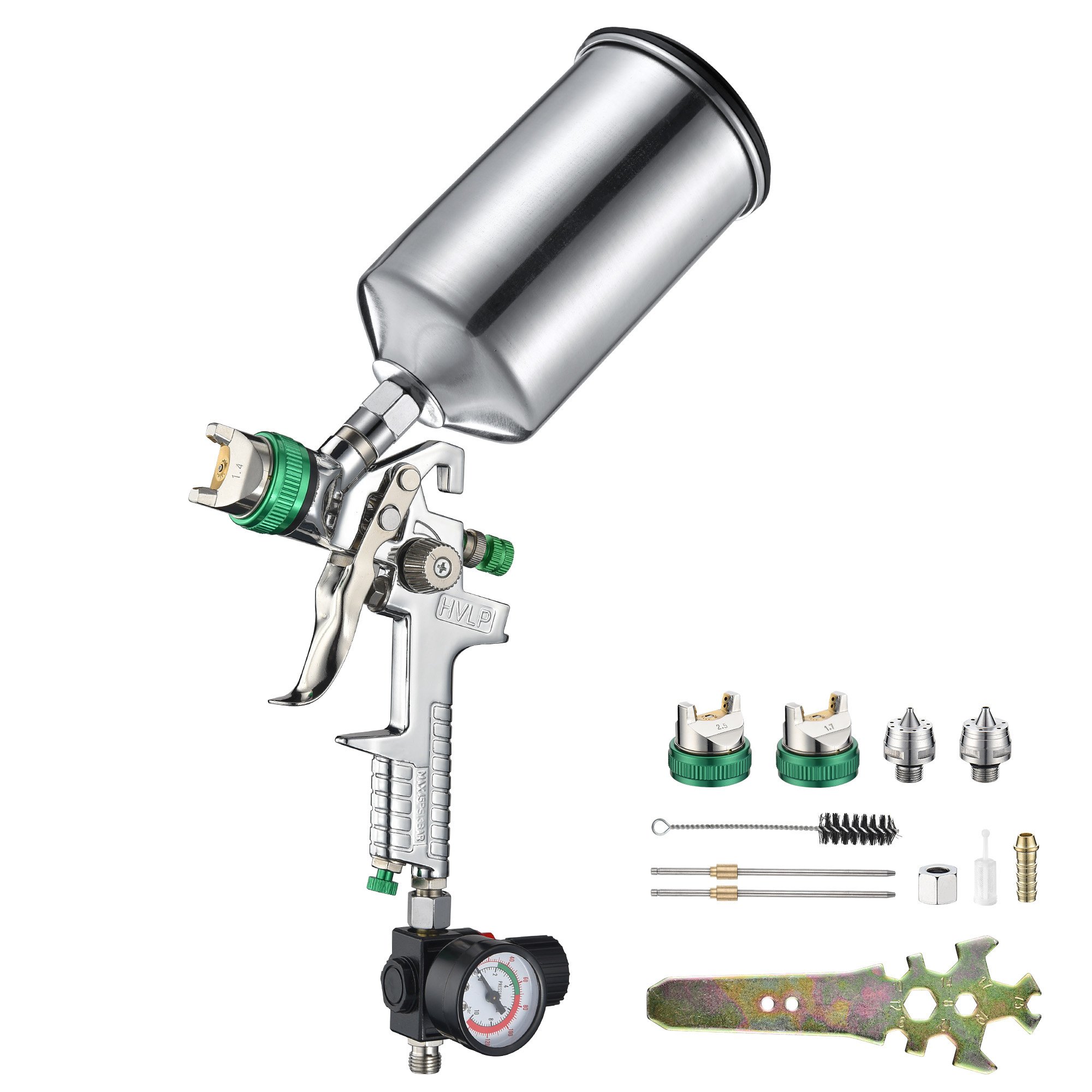

Package Contents:
- 1x HVLP Spray Gun with 1.4mm Nozzle
- 1x 1.7mm Nozzle with Needle & Air Cap
- 1x 2.5mm Nozzle with Needle & Air Cap
- 1x Paint Cup with Lid

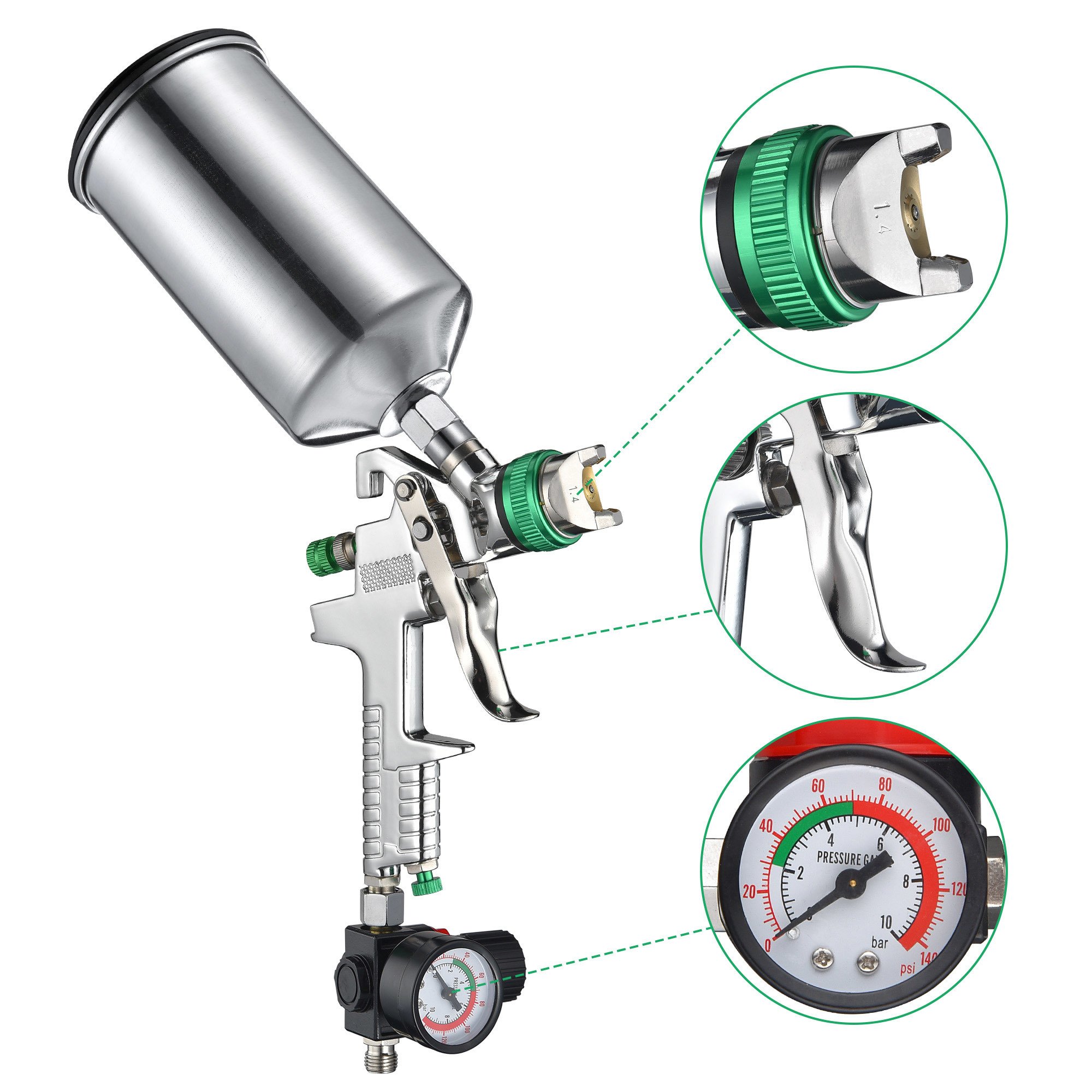

- 1x Air Pressure Regulator with Gauge
- 1x Inlet Plug & Nut
- 1x Adjustment Wrench
- 1x Filter
- 1x Cleaning Brush
- 1x Manual
